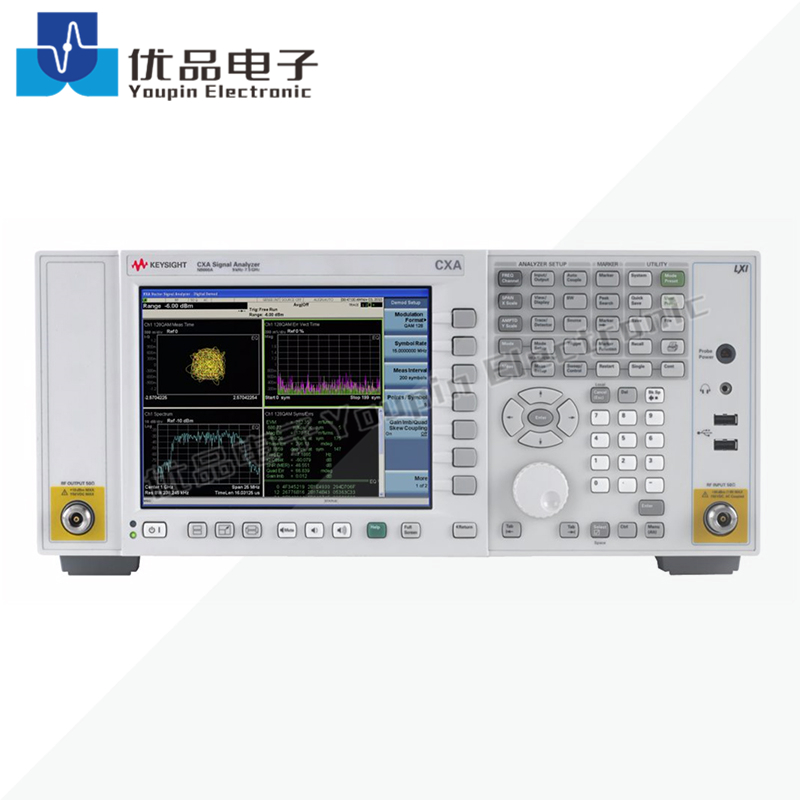

是德（安捷伦）N9000A CXA信号分析仪

一台优秀的低成本信号分析仪不仅在于能获取信号的基本信息，更在于能帮助您全面掌握信号的深层次本质特性。这就是 CXA 信号分析仪作为业界领先的低成本信号分析工具的优势之所在。其功能为实现经济高效测试以及与其它 X 系列信号分析仪进行无缝集成提供了坚实的基础。同时 CXA 也是一款适用于射频微波技术和信号分析教学的绝佳工具。CXA 为您带来信号分析必不可少的功能与 X 系列出色的可扩展性 —— 助您深谙信号之本质。

N9000A CXA 信号分析仪是 X 系列测试仪器中的一员，它是综合利用仪器、测量和软件进行信号分析的演进方法。它的灵活性能够满足您在多个产品和项目中对商业和技术的要求――无论是现在还是在未来。

功能
频率范围 9 kHz 至 3，7.5，13.6 或 26.5 GHz；覆盖至 26.5 GHz 的内部前置放大器选件
10 MHz（标配），25 MHz（选配）分析带宽
内置跟踪发生器选件至 3 GHz 或 6 GHz（高达 7.5 GHz）
可选的 75 Ω 输入连接器，1.5 GHz（高达 7.5 GHz）

性能
±0.5 dB幅度精度
+17 dBm 三阶截获（TOI）
频率在 1 GHz 时，显示的平均噪声电平（DANL）为 -163 dBm，在 26.5 GHz 时 DANL 为 -147 dBm，使用前置放大器
73 dBc W-CDMA ACLR动态范围（噪声校正功能启动）

测量应用和软件
CXA支持超过25种测量应用软件，涵盖移动通信、无线连接、数字电视和通用测试
可运行于 CXA 上的高级信号分析软件可支持超过70种信号制式
标准内置是德一键式功率测量组件

自动测试和通信接口
符合 LXI C 类标准，并支持 SCPI 和 IVI-COM

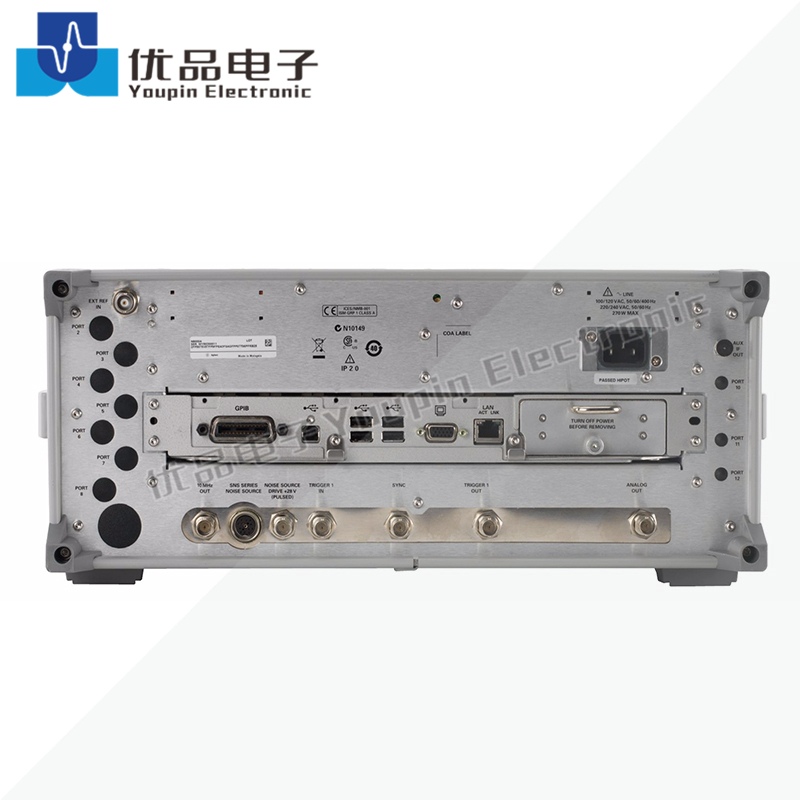

USB 2.0、1000Base-T LAN、GPIB
兼容 ESA 和其他 X 系列的远程编程语言
通用的 X 系列用户界面 / 开放式 Windows® XP 操作系统



N9000A-1CM     Rackmount kit
N9000A-1CN     Front handle kit
N9000A-1CP     Rackmount and handle kit
N9000A-1CR     Rack slide kit
N9000A-503      Frequency range, 9 kHz to 3.0 GHz
N9000A-507      Frequency range, 9 kHz to 7.5 GHz
N9000A-513      Frequency range, 9 kHz to 13.6 GHz
N9000A-526      Frequency range, 9 kHz to 26.5 GHz
N9000A-A6J      ANSI Z540-1-1994 Calibration
N9000A-AKT     Getting started guide CXA Russian localization
N9000A-AMG    Calibration + Uncertainties + Guardbanding (Accredited)
N9000A-B25      Analysis Bandwidth, 25 MHz
N9000A-BAG     Accessory pouch
N9000A-C75     Connector, 75 ohm additional RF Input, 1.5 GHz
N9000A-CR3     Connector, Wideband IF output
N9000A-DVR     DVD-ROM/CD-R/RW drive
N9000A-EDP     Enhanced display package
N9000A-EMC     Basic EMC functionality
N9000A-ESC     External source control
N9000A-FSA      Fine resolution step attenuator
N9000A-HTC     Hard transit case
N9000A-KB2      US 65 key USB keyboard
N9000A-KYB     Keyboard, USB
N9000A-MLP     Minimum loss pad, 50 to 75 ohm
N9000A-P03      Preamplifier, 3 GHz
N9000A-P07      Preamplifier, 7.5 GHz
N9000A-P13      Preamplifier, 13.6 GHz
N9000A-P26      Preamplifier, 26.5 GHz
N9000A-PFR     Precision frequency reference
N9000A-PLG     Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
N9000A-PRC    Portable configuration
N9000A-SF1     Security features, exclude launching programs
N9000A-SF2     Security features, prohibit saving results
N9000A-SSD     Additional removable solid state drive
N9000A-T03      Tracking generator, 9 kHz to 3 GHz
N9000A-T06      Tracking generator, 9 kHz to 6 GHz
N9000A-UK6     Commercial calibration certificate with test data
N9000A-W7S    Operating system, Windows 7 sticker, for Demo only
BV0005A             BenchVue Spectrum Analyzer Pro Software License
N6171A               MATLAB Software
N6171A-M01      MATLAB-Basic Package, individual license - node-locked
N6171A-M02      MATLAB-Standard Package, individual license - node-locked
N6171A-M03      MATLAB-Advanced Package, individual license - node-locked
N9051B              Pulse Measurement Software
N9051B-2FP      Pulse measurement software, fixed perpetual, license
N9051B-2TP      Pulse measurement software, fixed, transportable perpetual license
N9051B-3FP      Phase and frequency measurements, fixed perpetual license
N9051B-3TP      Phase and frequency measurements, transportable perpetual license
N9051B-4FP      Extended analysis and statistics, fixed perpetual license
N9051B-4TP      Extended analysis and statistics, transportable perpetual license
N9051B-5FP      Deep capture, fixed perpetual license
N9051B-5TP      Deep capture, transportable perpetual license
N9051B-A2B      Upgrade from N9051A to N9051B
W6141A              EMI measurement application for CXA
W6141A-2FP      EMI measurement application for CXA, fixed perpetual license
W6141A-2TP      EMI measurement application for CXA, transportable perpetual license
W6152A              Digital cable TV measurement application for CXA
W6152A-2FP     DVB-C/J.83 Annex A/C measurement application for CXA, fixed perpetual license
W6152A-2TP     DVB-C/J.83 Annex A/C measurement application for CXA, transportable perpetual license
W6152A-3FP     J.83 Annex B measurement application for CXA, fixed perpetual license
W6152A-3TP     J.83 Annex B measurement application for CXA, transportable perpetual license
W6152A-MEU    Minor enhancement update
W6153A              DVB-T/H/T2 measurement application for CXA
W6153A-2FP     DVB-T/H measurement application for CXA, fixed perpetual license
W6153A-2TP     DVB-T/H measurement application for CXA, transportable perpetual license
W6153A-3FP     DVB-T2 measurement application for CXA, fixed perpetual license
W6153A-3TP     DVB-T2 measurement application for CXA, transportable perpetual license
W6153A-MEU    Minor enhancement update
W6155A              ISDB-T/Tmm measurement application for CXA
W6155A-2FP     ISDB-T measurement application for CXA, fixed perpetual license
W6155A-2TP     ISDB-T measurement application for CXA, transportable perpetual license
W6155A-3FP     ISDB-Tmm measurement application for CXA, fixed perpetual license
W6155A-3TP     ISDB-Tmm, measurement application for CXA, transportable perpetual license
W6156A              DTMB (CTTB) measurement application for CXA
W6156A-2FP    DTMB (CTTB) measurement application for CXA, fixed perpetual license
W6156A-2TP    DTMB (CTTB) measurement application for CXA, transportable perpetual license
W6158A             CMMB measurement application for CXA
W6158A-2FP    CMMB measurement application for CXA, fixed perpetual license
W6158A-2TP    CMMB measurement application for CXA, transportable perpetual license
W9062A             SCPI language compatibility for CXA
W9062A-2FP    SCPI language compatibility for CXA, fixed perpetual license
W9063A             Analog demodulation measurement application for CXA
W9063A-2FP    Analog demodulation measurement application for CXA, fixed perpetual license
W9063A-2TP    Analog demodulation measurement application for CXA, transportable perpetual license
W9063A-3FP    FM stereo measurement application for CXA, fixed perpetual license
W9063A-3TP    FM Stereo measurement application for CXA, transportable perpetual license
W9063A-MEU   Minor enhancement update
W9064A             VXA vector signal analysis measurement application for CXA
W9064A-1FP    Vector signal analysis measurement application for CXA, fixed perpetual license
W9064A-1TP    Vector signal analysis measurement application, transportable license
W9064A-2FP     Flexible digital modulation analysis measurement application for CXA, fixed perpetual license
W9064A-2TP     Flexible digital modulation analysis measurement application for CXA, transportable license
W9064A-MEU    Minor enhancement update
W9068A              Phase noise measurement application for CXA
W9068A-2FP     Phase noise measurement application for CXA, fixed perpetual license
W9068A-2TP     Phase noise measurement application for CXA, transportable perpetual license
W9068A-MEU    Minor enhancement update
W9069A             Noise figure measurement application for CXA
W9069A-1FP     Noise figure measurement application for CXA, fixed perpetual license
W9069A-1TP     Noise figure measurement application for CXA, transportable perpetual license
W9069A-2FP     Noise figure measurement application advanced features for CXA, fixed perpetual license
W9069A-2TP     Noise figure measurement application advanced features for CXA, transportable perpetual license
W9069A-MEU    Minor enhancement update
W9071A              GSM/EDGE/Evo measurement application for CXA
W9071A-2FP     GSM/EDGE measurement application for CXA, fixed perpetual, license
W9071A-2TP    GSM/EDGE measurement application for CXA, transportable perpetual, license
W9071A-3FP     EDGE Evo measurement application for CXA, fixed perpetual license
W9071A-3TP     EDGE Evo measurement application for CXA, transportable perpetual license
W9071A-MEU    Minor enhancement update
W9072A             CDMA2000 measurement application for CXA
W9072A-2FP     CDMA2000 measurement application for CXA, fixed perpetual license
W9072A-2TP     CDMA2000 measurement application for CXA, transportable perpetual license
W9073A              W-CDMA/HSPA+ measurement application for CXA
W9073A-1FP     W-CDMA measurement application for CXA, fixed perpetual license
W9073A-1TP     W-CDMA measurement application for CXA, transportable perpetual license
W9073A-2FP     HSDPA / HSUPA measurement application for CXA, fixed perpetual license
W9073A-2TP     HSPA measurement application for CXA, transportable perpetual license
W9073A-3FP     HSPA+ measurement application for CXA, fixed perpetual license
W9073A-3TP     HSPA+ measurement application for CXA, transportable perpetual license
W9073A-MEU    Minor enhancement update
W9075A              Mobile WiMAX measurement application for CXA
W9075A-2FP     Mobile WiMAX measurement application for CXA, fixed perpetual, license
W9075A-2TP     Mobile WiMAX measurement application for CXA, transportable perpetual, license
W9076A             1xEV-DO measurement application for CXA
W9076A-1FP    1xEV-DO measurement application for CXA,fixed perpetual license
W9076A-1TP    1xEV-DO measurement application for CXA, transportable perpetual license
W9077A             WLAN 802.11a/b/g/n measurement application for CXA
W9077A-2FP    WLAN 802.11a/b/g measurement application for CXA, fixed perpetual license
W9077A-2TP    WLAN 802.11a/b/g measurement application for CXA, transportable perpetual license
W9077A-3FP    WLAN 802.11n measurement application for CXA, fixed perpetual license
W9077A-3TP    WLAN 802.11n, measurement application for CXA, transportable perpetual license
W9077A-6FP    WLAN 802.11ah Measurement
W9079A             TD-SCDMA/HSPA measurement application for CXA
W9079A-1FP    TD-SCDMA measurement application for CXA, fixed perpetual license
W9079A-1TP    TD-SCDMA measurement application for CXA, transportable perpetual license
W9079A-2FP    HSPA measurement application for CXA, fixed perpetual license
W9079A-2TP    HSPA measurement application for CXA, transportable perpetual license
W9079A-MEU   Minor enhancement update
W9080B             LTE/LTE-Advanced FDD Measurement Application for CXA
W9080B-1FP    LTE FDD measurement application for CXA, fixed perpetual license
W9080B-1TP    LTE FDD measurement application for CXA, transportable perpetual license
W9080B-2FP    LTE-Advanced FDD measurement application for CXA, fixed perpetual license
W9080B-2TP    LTE-Advanced FDD measurement application for CXA, transportable perpetual license
W9081A             Bluetooth measurement application for CXA
W9081A-2FP    Bluetooth measurement application for CXA, fixed perpetual license
W9081A-2TP    Bluetooth measurement application for CXA, transportable perpetual license
W9081A-MEU   Minor enhancement update
W9082B             LTE/LTE-Advanced TDD Measurement Application for CXA
W9082B-1FP    LTE TDD measurement application for CXA, fixed perpetual license
W9082B-1TP    LTE TDD measurement application for CXA, transportable perpetual license
W9082B-2FP    LTE-Advanced TDD measurement application for CXA, fixed perpetual license
W9082B-2TP    LTE-Advanced TDD measurement application for CXA, transportable perpetual license
W9083A             Multi-Standard Radio (MSR) measurement application for CXA
W9083A-1FP    Multi-Standard Radio (MSR), measurement application for CXA, fixed perpetual license
W9083A-1TP    Multi-Standard Radio, MSR, measurement application for CXA, transportable perpetual license
